SK Chemicals

Introduction

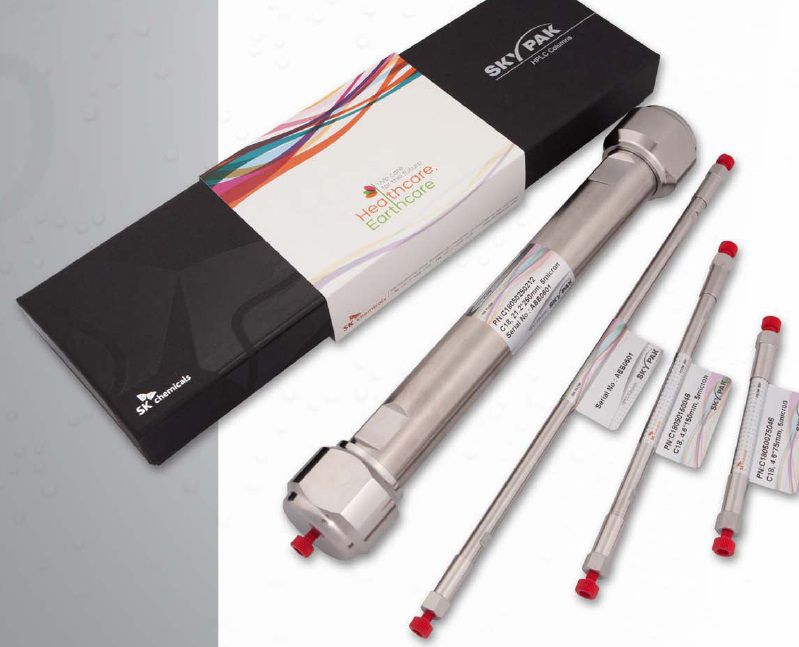

SKYPAK is the excellent choice for high-performance liquid chromatography analysis. It offers a wide range of reversed phase and normal phase HPLC columns. SKYPAK can be delivered in packages varying in size from narrow bore columns to semi-preparative columns. All packing materials are based on a 3, 5, 10um porous spherical silica support. Every step of the manufacturing process is stringently controlled and HPLC column is pretested to guarantee the high quality performance and reproducible column-to-column performance.



Features



• Excellent reproducibility

• Narrow peaks for outstanding efficiency

• Narrow particle size distribution

• Lower column back pressure

• High pure and rigid silica

• Variety of chemistries



Custom-made HPLC Column



We provide a variety of column size. If the specific column size is not on the product list, custom-made service is available.



Delivery Service



SKYPAK can be delivered to customer within 5 days. In case of custom-made service, it takes a week to provide columns to customers. The delivery lead-time for customized columns depends on size of customer’s request.



Pre-tested Column



The high-quality performance of SKYPAK is guaranteed by the strict and well-systemized quality control procedure.



Specification



» Particle size : 3,5,10 um

» Particle shape : Spherical

» Specific surface area : 330 ㎡/g

» Pore size : 120 Å

» Pore volume : 1.00mL/g

» Purity : 99.99 %

» Bonded phase : Dihydroxypropane

» Endcapped : Yes

» Carbon load : 5.0 %

» Recommended pH range : 2 to 7.5



• High performance column for normal phase and reversed phase

• Useful substitute to bare silica column for reproducible chromatograms

• High performance

• Excellent peak shape

• High stability

• High compatible with a wide range of solvents from hexane through water



Product List



Analytical Chromatography

Particle size(um)

Length(mm)

2.1 mm ID

3 mm ID

3.9 mm ID

4.6 mm ID

3

50

Diol03050021

Diol03050030

Diol03050039

Diol03050046

70

Diol03070021

Diol03070030

Diol03070039

Diol03070046

100

Diol03100021

Diol03100030

Diol03100039

Diol03100046

150

Diol03150021

Diol03150030

Diol03150039

Diol03150046

250

Diol03250021

Diol03250030

Diol03250039

Diol03250046

5

50

Diol05050021

Diol05050030

Diol05050039

Diol05050046

70

Diol05070021

Diol05070030

Diol05070039

Diol05070046

100

Diol05100021

Diol05100030

Diol05100039

Diol05100046

150

Diol05150021

Diol05150030

Diol05150039

Diol05150046

250

Diol05250021

Diol05250030

Diol05250039

Diol05250046













Semi-preparation

Particle size(um)

Length(mm)

10.0 mm ID

21.2 mm ID

5

50

Diol05050100

Diol05050212

70

Diol05070100

Diol05070212

100

Diol05100100

Diol05100212

150

Diol05150100

Diol05150212

250

Diol05250100

Diol05250212

10

100

Diol10100100

Diol10100212

150

Diol10150100

Diol10150212

250

Diol10250100

Diol10250212
